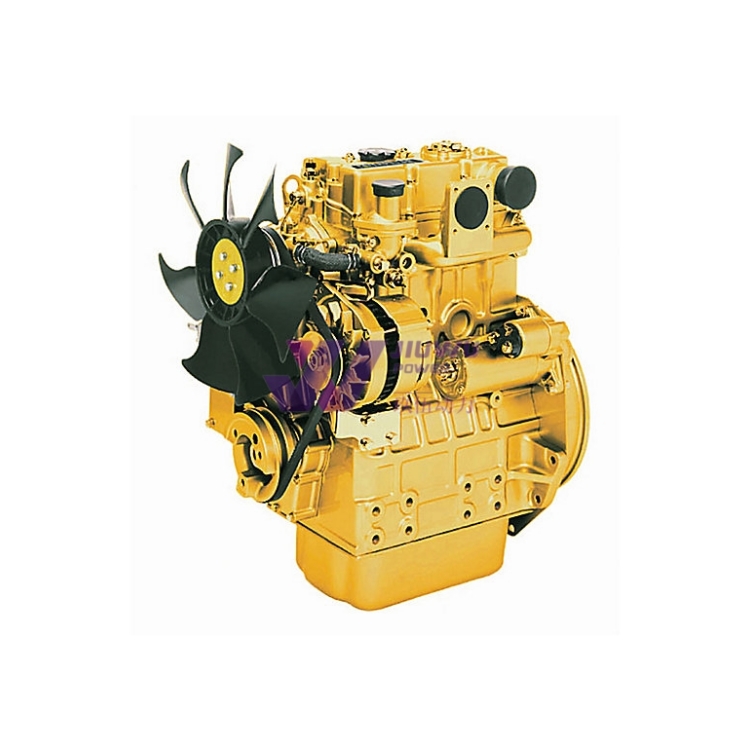

Excavator Diesel C1.5 30KW Engine Assembly for CATERPILLAR

Excavator Diesel C1.5 30KW Engine Assembly for CATERPILLAR

Name: caterpillar engine assembly
Uploaded: 2024-07-02T09:03:02+08:00
Description: Product description Cat ® C1.5 Industrial diesel engines can deliver impressive performance over a wide range

Get Latest Price

Payment Type:	L/C,T/T,D/P,D/A,Paypal
Incoterm:	FOB,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Guangzhou Huangpu

Applicable brand:

CATERPILLAR

Contact Now

Product Description

Product Attributes

Model No.: C1.5 (30 KW)

Status: New

Applicable Industry: Construction Works, Energy &Amp; Mining

Out-of-warranty Service: Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Place Of Origin: China

Warranty Period: 1 Year

Service System: Online Support

Maximum Torque: 112 Nm @ 1800 rpm

Rated Speed: 2200-3000 rpm

Minimum Power: 20.7 KW

Emission: US EPA Tier 4 Interim Equivalent Standards

Engine Configuration: Inline Three Cylinder Four Stroke Diesel Engine

Cylinder Diameter: 84 mm

Stroke: 90 mm

Net Weight: 157 KG

Maximum Power: 30 KW

Displacement: 1.496 l

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Wooden
Picture Example	:

The file is encrypted. Please fill in the following information to continue accessing it

caterpillar engine assembly



Product Description

Product description

Cat ® C1.5 Industrial diesel engines can deliver impressive performance over a wide range of speeds and have excellent power density. The ultra compact packaging size and numerous options make these engines an ideal choice for various small and off highway applications.

cat diesel engine

Product Parameters

Rated power
Maximum Power	30 KW
Maximum Torque	112 Nm @ 1800 rpm
Rated Speed	2200-3000 rpm
Minimum Power	20.7 KW
Emission standard
Emissions	US EPA Tier 4 Interim Equivalent Standards
Currency
Engine Configuration	Inline Three Cylinder Four Stroke Diesel Engine
Cylinder Diameter	84 mm
Stroke	90 mm
Displacement	1.496 l
Compression Ratio	22.5:1
Air Intake Method	Naturally Aspirated (NA) or Turbocharged (T)
Combustion System	Indirect Fuel Injection
Rotation Direction (Viewed From The Flywheel End)	Counterclockwise
Engine Size - Approximate Values
Length	572 mm
Width	512 mm
Height	643 mm
Net Weight	157 kg
Whatsapp	+8618319626398

Product Details

The single-sided repair function improves maintenance convenience while reducing the overall operating costs for the owner. Industries and applications powered by C1.5 engines include: aircraft ground support, auxiliary power equipment, drilling rigs, wood crushers and grinders, compactors/rollers, construction, forestry, general industry, material handling, mining, mobile earthmoving equipment, mobile lighthouses, pumps, trenchers, lawns and landscaping, underground mining equipment, and welding machines. The C1.5 engine has a rated power of 20.9 to 30.0 bkW (28.0 to 40.2 bhp) at speeds between 2200 and 3000 rpm, meeting the EU Stage IIIA emission standards. Rated power: The rated power at 1800 to 3000 rpm is 18.4 to 27.6 bkW (24.7 to 37.0 bhp), in compliance with the US EPA Tier 4 Final emission standards.
