Original C0.7 Engine Assembly for Caterpillar Excavator Part

Original C0.7 Engine Assembly for Caterpillar Excavator Part

Get Latest Price

Payment Type:	L/C,T/T,D/P,D/A,Paypal
Incoterm:	FOB,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Air,Express,Land
Port:	Guangzhou Huangpu

Applicable brand:

CATERPILLAR

Contact Now

Product Description

Product Attributes

Model No.: C0.7 (13.3 KW)

Status: New

Applicable Industry: Construction Works, Energy &Amp; Mining

Out-of-warranty Service: Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Place Of Origin: China

Warranty Period: 1 Year

Service System: Online Support

Maximum Power: 13.3 KW

Maximum Torque: 44 Nm @ 1400 rpm

Rated Speed: 2200-3600 rpm

Emissions: US EPA Tier 4 Final and EU Stage V

Engine Configuration: Inline 3-cylinder

Cylinder Diameter: 67 mm

Stroke: 72 mm

Net Weight: 71 KG

Minimum Power: 8.8 KW

Displacement: 0.76 l

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Wooden Packing
Picture Example	:

The file is encrypted. Please fill in the following information to continue accessing it

excavator spare parts supplier



Product Description

Product Details

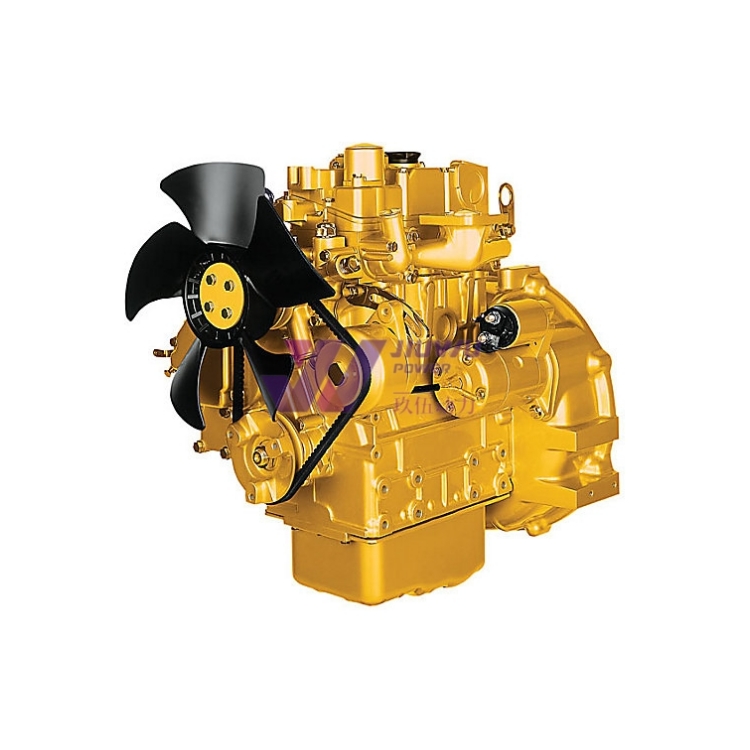

The engine components of C0.7 excavator are one of the most important parts of Caterpillar excavator. The design of this engine aims to provide reliable and efficient power for excavators, ensuring that they can easily perform a wide range of tasks. The C0.7 engine assembly consists of several key components, including cylinder banks, cylinder heads, pistons, connecting rods, and crankshafts. These parts work together to form a powerful and efficient engine, capable of even completing the most complex drilling operations.

Product Parameters

Rated power
Maximum Power	13.3 KW
Maximum Torque	44 Nm @ 1400 rpm
Rated Speed	2200-3600 rpm
Minimum Power	8.8 KW
Emission standard
Emissions	US EPA Tier 4 Final and EU Stage V
Currency
Engine Configuration	Inline 3-cylinder
Cylinder Diameter	67 mm
Stroke	72 mm
Displacement	0.76 l
Compression Ratio	23.5:1
Air Intake Method	Natural intake (NA)
Combustion System	Indirect Fuel Injection
Rotation Direction (Viewed From The Flywheel End)	Counterclockwise
Engine Size - Approximate Values
Length	480 mm
Width	371 mm
Height	528 mm
Net Weight	71 kg
